> 18K MINISPLIT HP INVERTER
Ducted indoor unit can be mixed and matched with other indoor units for zone control of multiple rooms/areas.

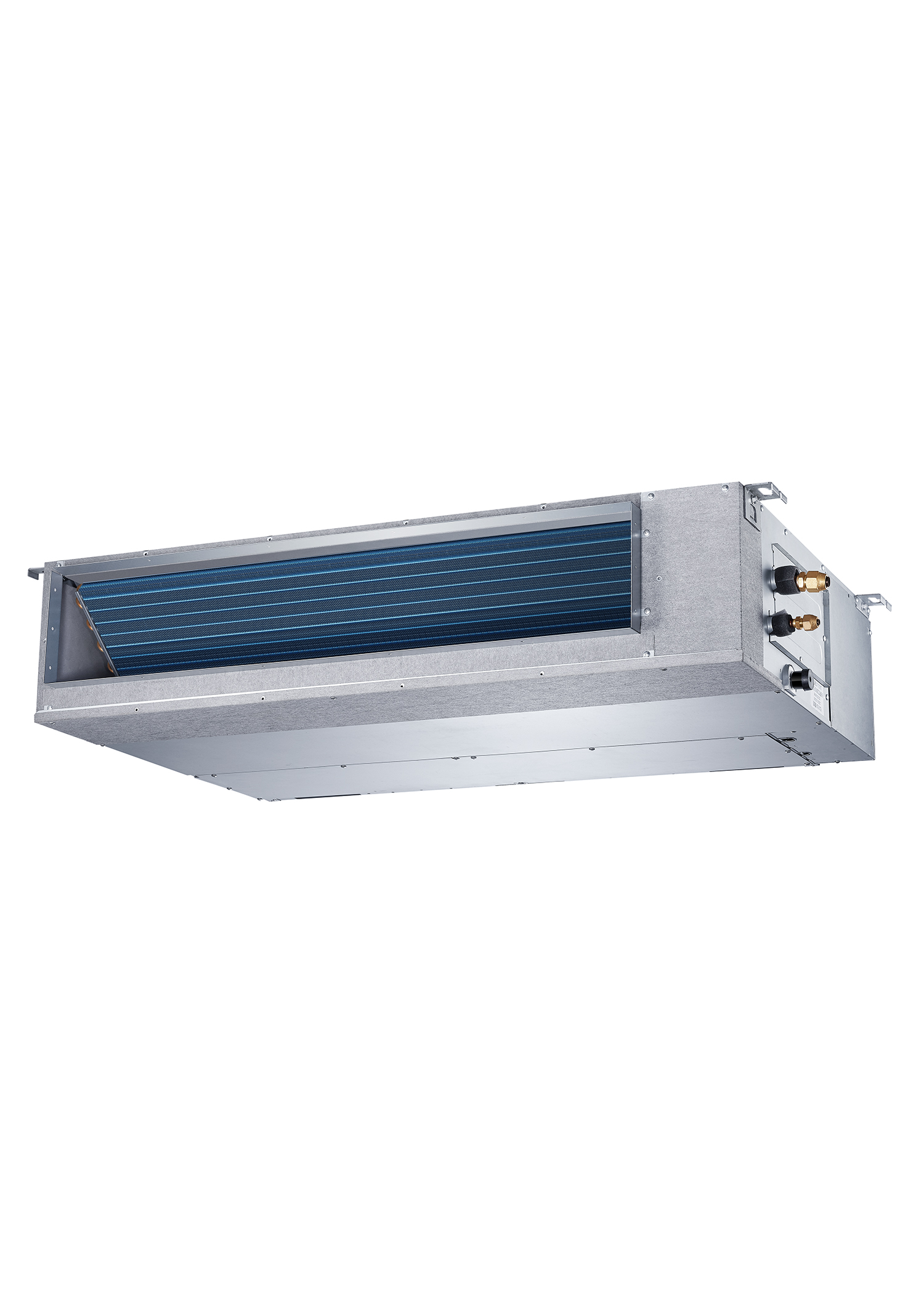

18K MINISPLIT HP INVERTER
18K 208/230V SINGLE/MULTI INDOOR DUCTED
Detail
18K 208/230V Single/Multi Zone Slim Duct A/H
Refrigerant
R454B
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
Cooling Capacity BTUH
17,500
Inverter Technology
Yes
Heating Capacity BTUH
19,500
Wireless Remote
No
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
10 years on compressor, 10 year on parts
CFM
618
Fan Speeds
3
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
3.0
Sound Rating (dBA)
36
Dimensions HxWxD (in.)
9.65x39.37x29.53
Shipping Wt (lbs)
91.27
Test Listing
ETL US and Canada
NOTE
Smart Phone Capable
Certification
AHRI (complete system)
Item #:
B-VHP18DA-1
