> 18K MINISPLIT HP INVERTER
Multi-zone outdoor unit is designed to handle 3 indoor air handlers Indoor units may be mixed and matched Inverter technology saves an estimated 40% or more on energy consumption over non-inverter models Delivers extra heating capacity; 100% at 0°F

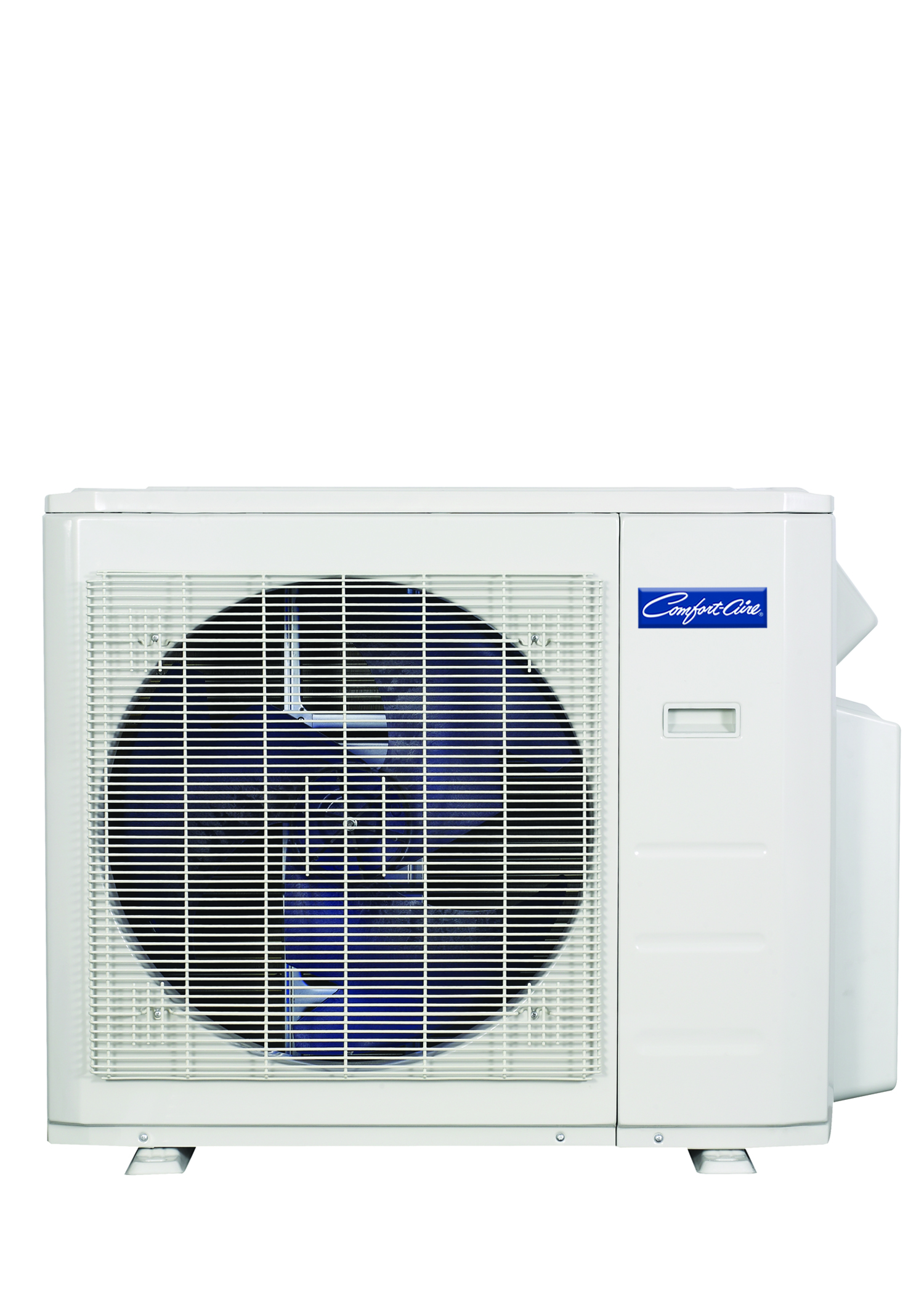

18K MINISPLIT HP INVERTER
18K 208/230V MULTI ZONE OUTDOOR
Detail
18K 208/230V Multi Zone 3 Port Outdoor Section
Refrigerant
R454B
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
Cooling Capacity BTUH
19,000
Fuse Amps
20
Inverter Technology
Yes
Heating Capacity BTUH
20,000
Wireless Remote
No
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
10 years on compressor, 10 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
17.5
Dimensions HxWxD (in.)
31.89x37.24x16.14
Shipping Wt (lbs)
148.15
Test Listing
ETL US and Canada
Certification
AHRI (complete system)
SEER2/EER2
25/15
No. of Heads
3
Factory Line-Set Charge (ft.)
25
HSPF2
10.4
Item #:
A-VHP183A-1
