> 33K MINISPLIT HP INVERTER
High efficiency HyperHeat outdoor unit operates down to -22°F ambient temperature Inverter technology matches compressor speed to load demand, saving an estimated 40% or more on energy consumption over non-inverter models Units are rated as high as 27.4 SEER2

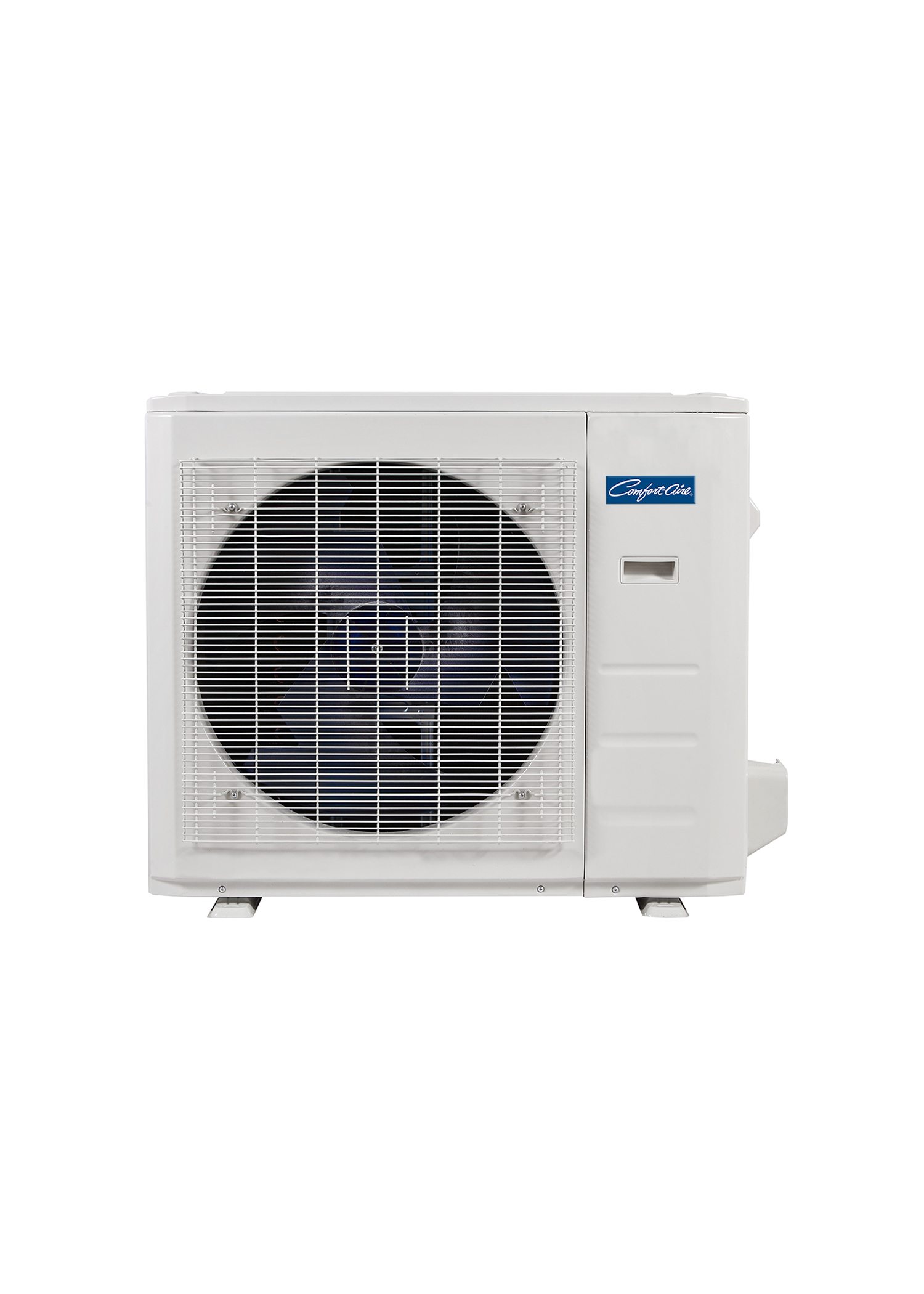

33K MINISPLIT HP INVERTER
19.5 SEER2 208/230V OUTDOOR
Detail
33K 208/230V Single Zone Heat Pump
Refrigerant
R454B
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
Cooling Capacity BTUH
33,000
Fuse Amps
35
Inverter Technology
Yes
Heating Capacity BTUH
36,000
Wireless Remote
No
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
10 years on compressor, 10 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
34.0
Sound Rating (dBA)
63.5
Dimensions HxWxD (in.)
31.89x37.24x16.14
Shipping Wt (lbs)
167.99
Test Listing
ETL US and Canada
Certification
AHRI (complete system)
SEER2/EER2
19.5/12.0
No. of Heads
1
Factory Line-Set Charge (ft.)
25
HSPF2
10.5
Item #:
A-VHP33SA-1
